Denver 4ft Dia. x 5ft Long Ball Mill ID: 1560929

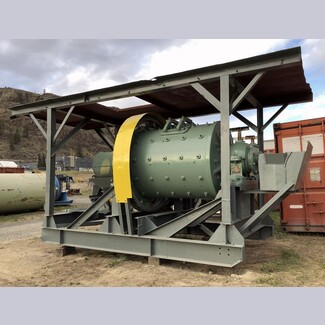

Denver 4ft Dia. x 5ft Long Ball Mill

• Make: Denver Equipment Co.
• Type: Ball Mill
• Condition: Used Condition - Freshly Repainted
• Capacity: 45 TPD
• Size: 4ft Diameter x 5ft Long
• Liners: Rubber Lined
• Fabricated Scoop Feed with Feed Box

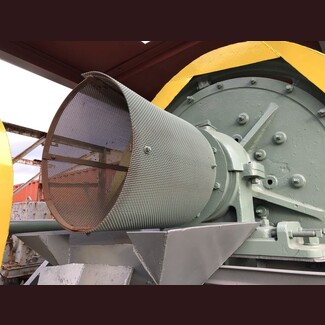

• Trommel Overflow Discharge

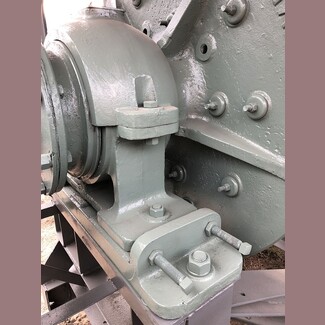

• Self-Aligning Babbitt Bearings
• Straight-Cut Bull and Pinion Gear
  • 8in Wide
  • Bull Gear: 100 Teeth
  • Pinion Gear: 17 Teeth
  • Complete with Guarding
  • Operating Speed Approx. 29 RPM
• Belt Drive Configuration
• Pinion Shaft comes with 51in Diameter 6-C Section Drive Sheave
• Supplied with 40HP Electric Motor

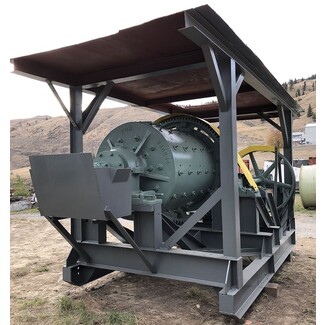

• Mounted on Steel Operating Skid
  • With Metal Roof


• Shipping Dimensions:
  • Length: 20ft Long
  • Width: 8.5ft Wide
  • Height: 9.5ft Tall
  • Shipping Weight: Approx. 25,000 lbs.


• Location: Savona, British Columbia, Canada
