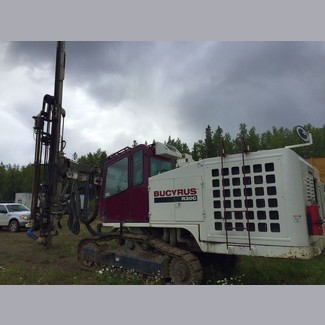

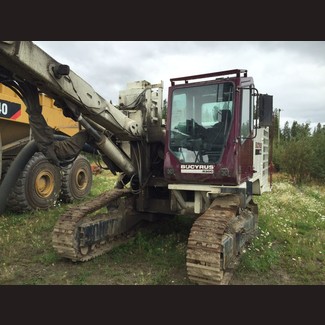

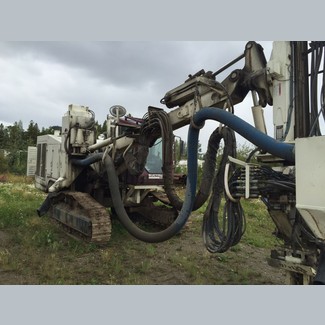

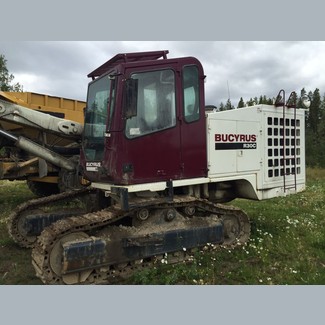

Terex Reedrill R30C Self-Contained Hydraulic Track Drill ID: 148097

• Model: R30C.
  • 5 ft. boom.
    • Hole diameter up to 5 in. / 12.7 cm.
  • Drifter:
    • Model: HPR6519.
      • 25 hp / 19 kW.
    • Weight: 660 lbs.
    • Number of blows: 2,500-2,700 bpm.
    • Number of revolutions: 0-300 rpm.
  • Tramming:
    • 15 in. ground clearance.
    • Speed: 4 km/h
    • 35° gradeability.
    • 15.1 in. track pad width.
• Guide Shell:
• Max. starter rod, standard: 240 inches.
• Max. single pass, optional: 222 inches.
• Feed rate: 120 ft/min.
• Gardner Denver Air Compressor.
  • 350 CFM.
    • 150 psi.
  • Engine:
    • Caterpillar C9 tier III diesel engine.
• Please see the specs tab below for more detailed information.
  • Specs

Shipping information:

• Dimensions (W x H):
  • 102 in. x 123 in.
  • 2.59 m x 3.12 m.
• Weight:
  • 43,400 lbs / 19,686 kg.

Please contact us for more information.
