Atlas Copco ECM-590 Hydraulic Crawler Drill ID: 1473118

Atlas Copco ECM-590 Hydraulic Crawler Drill

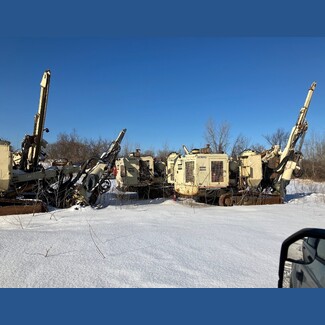

Quantity: 4 Units Available

• Make: Atlas Copco
• Model: ECM-590
• Type: Hydraulic Crawler Drill
• Year: 2007
• Hours: Approx. 6,200 - 6,700 Hours
• Condition: Used, Reported in Working Condition


• General Model Specifications:
  • Engine: Cummins 6CT8.3 Diesel Engine
    • Rated Power Output: 215HP (159kW)
    • Operating Speed: 2,350RPM
  • Boom & Guide:
    • Max Horizontal Boom Swing: 30° Right, 34.6° Left
    • Max Vertical Boom Movement: 51° Up, 15° Down
    • Max Guide Swing: 48° Right, 40° Left
    • Max Guide Dump: 180°
  • General Specs:
    • Compressor Type: Rotary Screw
    • Compressor Volume: 250 CFM (7m³/min)
    • Compressor Pressure: 140psig (9.8kg/cm²)
    • Gradability: 35° (70%)
    • Tram Speed: 2mph (3.3km/h)
    • Grouser Width: 12in (305mm)
  • Overall Dimensions:
    • Length: 19ft 5in (5,918mm)
    • Shipping Width: 8ft (2,438mm)
    • Shipping Height: 9ft 4in (2,845mm)
    • Ground Clearance: 18in (457mm)


• Location: Eastern Canada
