KGO Liquid Polymer System ID: 1470217

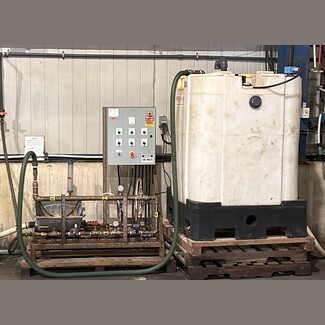

KGO Liquid Polymer System

• Make: KGO Group Ltd
• Type: Coagulant System
• Year: 2021
• Condition: Used Condition


• Liquid Polymer Makedown System:
  • Neat Polymer Flow: 600 - 750 mLPM
  • Makedown Concentration: 1%
  • Water Flow Rate: 50LPM

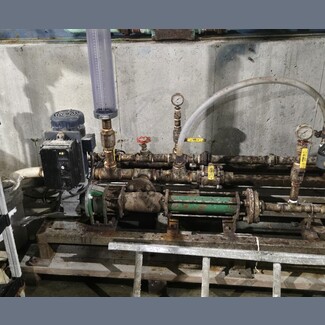

  • Progressive Cavity Pump:
    • Body Construction: Stainless Steel
    • Rotor: Stainless Steel
    • Shaft Seal: Mechanical Seal
    • Drive: Electric Motor
      • Power Output: 0.37kW
      • Voltage: 90 VDC
      • Mounted to Gear Reducer
  • Dilution Spool Assembly

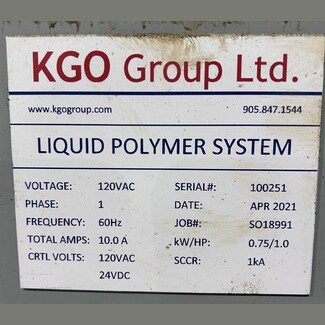

  • Power Requirements:
    • Voltage: 120 Volts
    • Frequency: 60Hz
    • Phase: Single Phase
  • Approx. Dimensions: 820mm x 1,450mm x 1,550mm

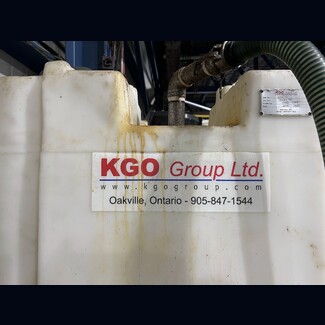

• Age/Application Tank:
  • Model: 1200 Tank
  • Capacity: 1,200L
  • Construction: HDPE
  • Product Outlet/Drain Valve
  • Level Probe Set


• Metering Pump System:
  • Model: SPS15
  • Design Flow Rate: 4 - 5 LPM
  • Progressive Cavity Metering Pump:
    • Max Capacity: 15 LPM @ 560 KPA
    • Body Construction: Stainless Steel
    • Rotor: Stainless Steel
    • Shaft Seal: Mechanical Seal
    • Drive: Electric Motor
      • Power Output: 0.75kW
      • Voltage: 90 VDC
      • Mounted to Gear Reducer

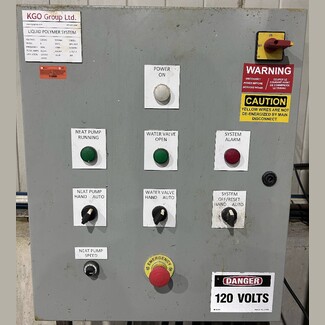

      • Speed Controller
  • Suction Spool
  • Discharge Spool
  • Post-Dilution Spool
  • Power Requirements:
    • Voltage: 120 Volts
    • Frequency: 60Hz
    • Phase: Single Phase
  • Approx. Dimensions: 900mm x 2,000mm x 900mm


• Location: Eastern Canada
