CAT 815B Soil Compactor ID: 1454300

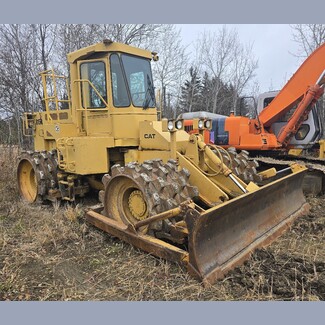

CAT 815B Soil Compactor

• Make: Caterpillar
• Model: 815B
• Type: Soil Compactor
• Condition: Used, Reported in Working Condition
• Wheel Drum Type: Sheepsfoot
• Articulated Frame
• ROPS Cab


• General Model Specifications:
  • Engine: Caterpillar 3306 Diesel Engine
    • Power Output: 210HP (157kW)
    • Cylinder: 4-Cylinder
    • Displacement: 10.5 Liter (638 cu in)
  • Transmission: Planetary Power Shift
    • Speed: 23.34 MPH Forward, 26.68 MPH Reverse
    • All-Wheel Drive
  • Brakes: Four-Wheel, Air Over Hydraulic Wedge Actuated, Automatically Adjusted Shoe Brakes
  • Wheels:
    • Drum Width: 38.5in (978mm)
    • Diameter, Over Feet: 56in (1.425m)
    • Diameter, Over Drum: 40.5in (1.029m)
    • Total Feet per Wheel: 60
    • Cleaner Bars: 2 per Wheel
  • Blade: 12ft 4in Wide x 2ft 10in Tall (3.761m x 860mm)
  • Overall Dimensions:
    • Length: 22ft 4in (6.802m)
    • Width: 11ft 2in (3.4m)
    • Height: 11ft 8in (3.547m)


• Location: Western Canada

View Spec Sheet Below
