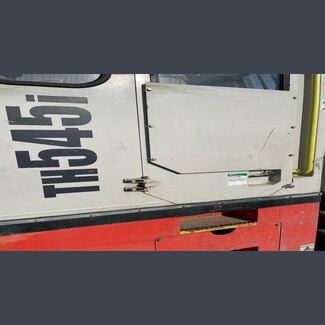

2021 Sandvik TH545i Underground Truck ID: 1412283

2021 Sandvik TH545i Underground Truck

• Make: Sandvik
• Model: TH545i
• Type: Underground Haul Truck
• Year: 2021
• Hours: 3,827
• Condition: Good Used Condition


• Key Features:
  • Capacity: 45,000 kg
  • Box Range: 18 - 26 m³
  • Maximum Payload: 45,000 kg
  • Standard Dump Box: 22 m³
  • Dump Box Motion:
  • Discharging Time: 14 Sec
  • Dumping Angle: 62° degrees
  • Total Operating Weight: 36,000 kg
    • Front Axle Operating Weight: 26,500 kg
    • Rear Axle Operating Weight: 9,500 kg
  • Total Loaded Weight: 81,000 kg
  • Front Axle Loaded Weight: 37,900 kg
  • Rear Axle Loaded Weight: 43,100 kg
  • Diesel Engine: Volvo TAD1641VE (Tier 2)
    • Torque: 2913 Nm @ 1200 rpm
    • Output: 450kW (603HP) @ 1800 rpm
  • Fuel Tank Capacity: 620 L


• Overall Dimensions:
  • Length: 10,721mm
  • Width: 3,004mm
  • Height: 2,906mm
  • Weight: 36,000kg


• Location: West Central USA
