Westfalia GEA OSD 2-02-137 Separator ID: 1377177

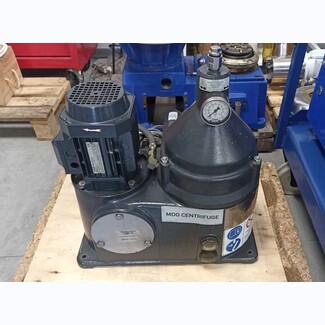

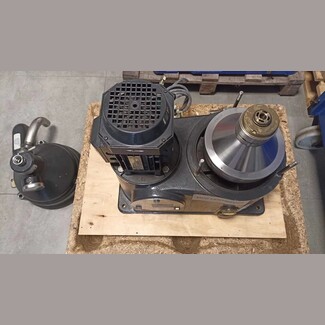

Westfalia GEA OSD 2-02-137 Separator

• Make: Westfalia
• Model: GEA OSD 2-02-137 Separator
• Style: Purifier/Clarifier
• Type: Mineral Oil Separator
• Year: 2006
• Condition: Used, Reported in Good Condition
• Application: Continuous Treatment of Fuel and Lube Oils, Hydraulic, Diesel, Turbine and Waste Oils, etc.
• Self Cleaning
• Voltage:
  • 50Hz: 380-440 Volt, 220-240 Volt
  • 60Hz: 440-480 Volt
• Comes with Tools for Maintenance


• Technical Data:
  • Bowl Speed: 10,000 RPM
  • Total Volume: 1 L
  • Solids Holding Space: 0.5 L
  • Starting Time: 20-25 Seconds

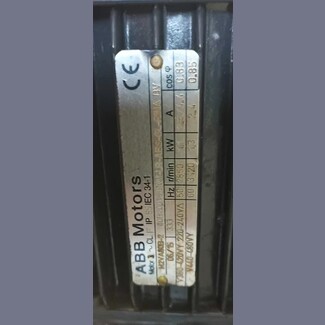

  • 3-Phase AC Motor
    • Power Consumption: 0.8 kW
    • Rating at 50Hz/60Hz: 1.1 kW/1.3 kW
    • Speed at 50Hz/60Hz: 3000 RPM/3600 RPM
    • Enclosure: IP 55
  • Centripetal Pump:
    • Discharge Pressure, Light Liquid Phase: 1.0 bar
    • Output: Up To 1400 Liters/Hour
  • Connections:
    • Product Feed, Discharge Light Phase: G ½ in
    • Heavy Phase: DN 25 (Ø 33.7 mm)
    • Solids Discharge: DN 50 (Ø 60.3 mm)
    • Operating, Filling and Displacement Water Feed: G ¾ in
    • Operating Water Discharge: DN 20 (Ø 21.3 mm)
    • Max Separating Temp: 100°C/212°F


• Location: Europe
