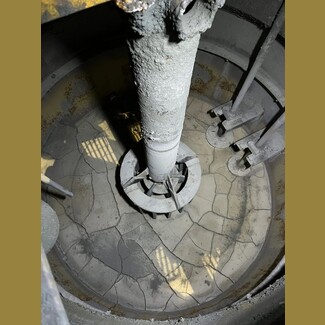

Metso RCS-5 9-Cell Cleaner-Rougher Flotation Circuit ID: 1632468

Metso RCS-5 9-Cell Cleaner-Rougher Flotation Circuit

• Make: Metso
• Model: RCS-5
• Type: Flotation Cells
• Year: 2016
• Condition: Used Condition
• Bank Arrangement: FB-1-FB-1-FB-2-2-3-DB
• Bank: (9) Cells
• Cell Dimensions: 2000mm Dia. x 2076mm Tall
• Cell Volume: 5m³
• Feed Box Opening: 620mm x 320mm
• Froth Outlet: 10in Dia.
• Drain Outlet: 6in Dia.
• Liners: Natural Rubber Lined - Cells, Feed Boxes, Discharge Boxes
• Impeller and Diffuser Construction: Polyurethane on Carbon Steel Frame
• Air Control Flange: 2in Dia.
• Air Requirements, per Bank: 27Nm³ at 19kPag


• Drive: Electric Motor - Each Cell
  • Power Output: 15kW
  • Voltage: 575/600 Volts
  • Frequency: 60Hz
  • Phase: 3-Phase


• Location: Northern Canada
