Oro Industries 16in Dia. Reverse Spiral Concentrator ID: 1409321

Oro Industries 16in Dia. Reverse Spiral Concentrator

• Make: Oro Industries
• Model: 16in Reverse Multi-Helix Spiral Concentrator
• Style: Cleaner
• Condition: Used Condition
• Production Rate: 1–2 TPH
• Water Consumption: 15–20 GPM @ 20–40 PSI
• Feed Hopper: 13.5in Wide x 18in Long x 5in Deep
  • Water Hose Hook-Up

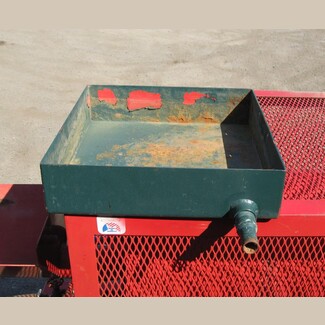

• Collection Pan: 16in x 16in x 3-7/8in Deep
  • External 1in Hose Barb

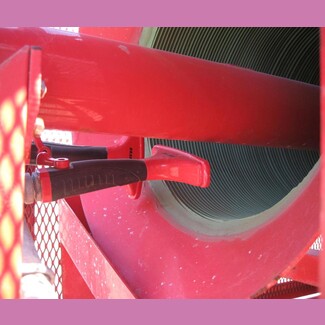

• Angle Adjustment: Hand Crank

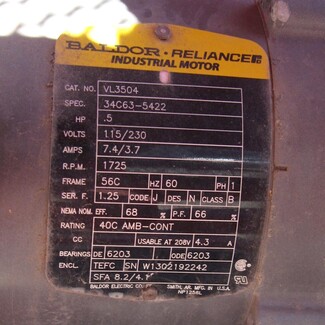

• Drive: Baldor Reliance Electric Motor
  • Power Output: 0.5HP
  • Rotation Speed: 1725RPM
  • Voltage: 115/230 Volts
• Speed Reducer: Tigear²
  • Ratio: 30:1
• Powder Coat Finish


• This is a Continuous or Batch Feed Secondary Concentrator for Processing Primary Sluice Concentrate, Primary Jig Concentrate, Centrifuge Concentrate, and Milled Hard Rock Ores. Setup as a Cleaner, the 16" Spiral Concentrator is Perfect for the Application of Mercury Recovery and Tailings Projects. For the Highest Production Performance, it is Recommended to Classify Material to Minus 1/4 inch


• Overall Dimensions:
  • Length: 90in
  • Width: 30in
  • Height: 53in


• Location: Savona, British Columbia, Canada
