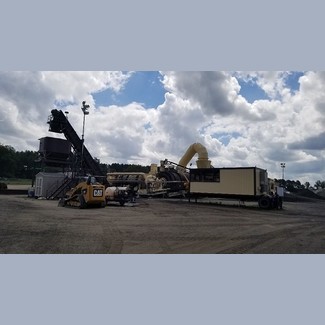

2001 Portable 500 TPH Recycle Counter Flow Astec Plant ID: 291728

• 2001 Cold Feed System
• Fully Portable
• Model: 4BF-130691-2A
  • 5 Bin System
    • (5) 9ft. x 14ft. Bins with
    • Extensions
    • Dividers
    • on a Portable Frame
    • Triple Axle Portability Package
  • Feeders
    • 30in. x 10ft. long
    • Driven by 5 HP AC Motors
  • Collecting Conveyor
    • 20ft. Foldable Stinger on the end for Transportation
  • Cold Feed System
    • Sits on Steel Legs
  • Bins Include Free Standing Relocatable Ramp Wall
  • Side Mounted NEMA Box with
    • 5 Updated A.C Variable Frequency Inverters
• Model: PSS-512 (Screen and Conveyor System)
  • 4ft. x 12ft. Double Deck Screen
  • Astec Portable 34in. wide 85ft. long Heavy Channel Frame Belt Conveyor
  • Feeds a 500 TPH Pugmill
  • Single Axle
  • Hydraulic Raise
• Model: PLM T500-60
  • 500 TPH Twin Shaft Pugmill with
    • Two Drive Motors
  • Material Bypass Chute
  • 34in. x 40ft. Incline Weigh Bridge Channel Conveyor
    • Feeds Dryer
  • Single Axle Chassis
• 2001 Counter Flow Dryer
  • Model: PAD 937C
  • Astec Portable Quad-Axle Counter Flow Recycle Dryer
  • 9ft. dia and 37ft. long
  • Chain Driven by
    • Single 200 HP Drive Package
  • Gravity Feed Chute into Dryer
  • Hauck SJO 750 Burner Burn Recycled Oil
  • Powered by a 200 HP Motor
  • Dryer Dumps the Dried Materals into Mixing Drum
  • Dryer Assembly Includes
    • Steel Timber Cribbing
    • Hydraulic Leveling
  • Shell has an Average Thickness of .400
  • Drive Chain and Sprockets have 75% Life Left
• 2001 Mixing Drum
  • Model: BTX822
  • Astec Portable Tandem Axle Mixing Drum
  • 8ft. Dia. and 22ft. Long
  • Trunnion Driven by 4 x 25 HP Motors
  • Gravity Feed Chute Introduces Virgin Materials and Recycle into the Drum
  • Shell has Insulation and Stainless Steel Skin Wrapped around for Heat Retention
  • Front has the Scavenger Fan Mounted Over Goose Neck
  • Triple Axle
• 2012 Wrap Around Recycle System
  • 2 Bin System
  • (2) 8 ft. dia and 22ft. long
  •  Heavy Duty Incline Grizzly's
  • Bin Vibrators
  • Bins Feeders are Horizontal with
    • 36in. x 16ft. Variable Speed Feeders
    • 10 HP A.C Motors
  • Variable Frequency Drives are Mounted in a Nema Side Cabinet
  • Feed a 36in. Incline Channel Conveyor to a Single Deck Screen
  • 4ft. x 10ft. Single Deck Screen Feeds Over Flow Materials back to a Frame Mounted Rap Crusher to Re-Feed the Screen Again.
  • Weigh Belt Conveyor is Mounted on a Common Portable Tandem Axle Self-Erecting Frame
  • 36in. wide and 60ft. long Lattice Conveyor has a Single Axle and 20 HP Motor
• 2001 Pollution Control
  • Model: PBH 85SP
  • Portable Astec Direct Pulse Baghouse
  • Filters 85,000 CFM of Dust-Landen Air at a 5.8 to 1 Air to Cloth Ration with 1400 Bags
  • All Inlet and Outlet Dust Work with an Asec Fan
  • Twin 200 HP Motors
  • Inlet Damper
  • Dust Removed from Baghouse by Tandem Auger's Driven by a 5 HP Motor
  • 40 HP Screw Type Air Compressor Provides the Air
  • Baghouse Fan on a Tandem Axle Trailer
  • Primary Cyclone Mounted on the M.C Trailer for Precleaning of Heavy Dust Particulates
  • Approx. 150,000 Tons on the Bags
• 2001 Asphalt Storage System
  • Model: SEB10036
  • Astec 100- Ton Self Erect Surge Bin System
  • Holding Capactiy: 100 Tons Weighing 120 Pounds per Cubic Foot
  • Clam Gates have a 5ft. x 18in. Opening
  • 36in. Double Chain Slat Conveyor has a Reject Gate and Can Handle 500 TPH with a 75 HP Motor
  • 100-Ton Surge Bin is Mounted on Load Cells for Accurate load out into Trucks
  • Whole Unit is Mounted on a Quad Axle Assembley for Transportation
• 2001 Control House with Controls
  • Astec Pilot III Control House is One Room 10ft. x 22ft.
  • Atsec Controls were Upgraded to New Astec PM-2 Computer Controls
  • Mixing Drum
  • Baghouse Cross Screw
  • Dryer Motors are Set Up with Frequency Drive Inverters
  • Single Axle
• 2001 Motor Control Center
  • Model: PCY 855PS03
  • Motor Control Center with All Starters and Breakers is Mounted on the Front of the Cyclone
  • 15,000 Gallon Fuel Tank
  • M.C are Seimens and Includes Soft Starts for the Burner Mixing Drum and Baghouse Exhaust Fan Motors
  • S/O Type Wiring with Quick Disconnect Plugs
  • Tandem Axle Trailer
• Liquid Asphalt System
  • One 2001 CEI 30,000 Gallon Single Compartment with AC Metering Pump
  • Heatec
    • Model: HC-100a/
  • 1 MBTU Combo Oil/Gas Hot oil Heater is mOunted along with Unloading Pump Mounted on a Goose-Neck on Tank
  • Tank is Mounted on a Triple Axle Frame
  • 4in. Plant Metering Skid on the Rear Deck of A.C Tank
• Other Equipment
  • 8ft. x 40ft. Portable Trailer is Provided for the Spare Parts for the Plant
  • Hydraulic Pump Kit is Loacted inside along with Misc. Bags, Belts, Bearings etc.
• Location: Eastern USA
