Nordberg Mine Hoist ID: 219635

• Manual and semi automatic control.
• Westinghouse 250HP electric motor.
  • 500 volt,
  • 300/600RPM
• Nordberg drum assembly/Falk gear box reducer.
• Turn style wheel included Frontier-Kempler Constructors.

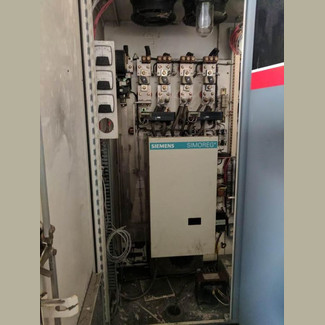

• Siemens controls.
• Square D Electrics Slope.
• Angle of shaft.
  • 5 degrees
  • 2,300 feet of total travel
• Shaft/1,800 ft.
• Outside portal/500 ft.
• Rated heavy, anticipated load 60 tons
• Cable is 1 ¾ in. diameter
• Drum width is 58 in.
• Drum diameter is 9 ft. 8 in.
• Drum shaft tapered at end for bearing mount.
• Bull gear:
  • 11 in. dia.
  • 193 teeth
• Pinion: 29 teeth
• 66:1 gear ratio
