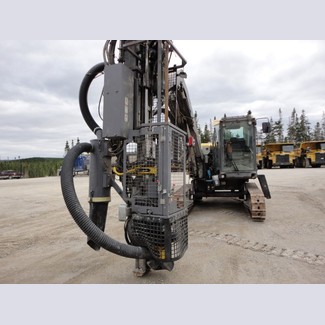

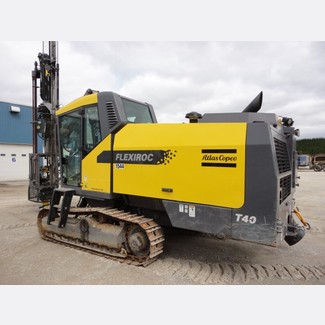

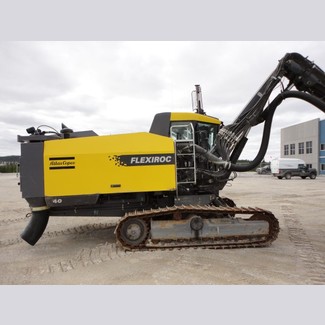

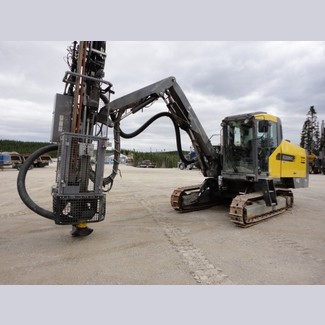

2015 Atlas Copco FLEXIROC T40 Drill ID: 210245

• Recommended Hole Range: 76-115 mm / 3 in. - 4.5 in.
• Hydraulic rod handling system: 28 m / 92 ft.
• Feed Height: 7140 mm / 23 ft. 5 in.
• Engine:

  • Caterpillar turbo charged, diesel.
  • Power rating at 2200 rpm / 168 kW 225 hp.
• Feed:
  • Hydraulic cylinder feed with hose guide and double drill steel
    support.
  • With movable lower guide/dust hood.
  • Total length: 7 140 mm / 23´5.
  • Travel length: 4 240 mm / 14 ft.
  • Feed extension: 1 400 mm / 4 ft 7 in.
  • Feed rate, max: 0.92 m/s / 184 ft / min.
• Compressor:

  • Atlas Copco OIS K-27-C106 GD screw compressor.
  • Working pressure, max: 10.5 bar / 152 psi.
  • FAD at normal working pressure: 136 l/s / 288 cfm.
• Hydraulic system:
  • Anti-jamming.
  • Automatic feed force control RPC-F.
  • Damper pressure control - impact DPC-I.
  • Hydraulic oil cooler.
  • Max ambient temperature: 50°C / 122°F.
  • Return and drainage filters.
  • Filtration rate: 16 μm absolute.
• Electrical system:
  • Voltage: 24 V.
  • Batteries: 2 x 12 V, 185 Ah.
  • Alternator: 28 V, 95 Ah.
• Quantity: 4.
• Hours: 2100 approx.
