3500 Ton Per Day CIP Plant ID: 174594

• Boliden Allis semi-autogenous grinding (SAG) mill.
  • Size (diameter x length)
    • 7.3 m x 2.74 m. (24 ft. x 9 ft.)
  • Lining: steel.
• Sagmill inching (drive) device.
• Sagmill feed chute.
  • Steel casing with liners.
• Sagmill feed end.
• Sagmill discharge liners.
• Sagmill shell liners.
• Sagmill discharge end.
• Sagmilld discharge end drive.
  • 3000 HP synchronous motor.
• Sagmill discharge screen (L x W):
  • 4.8 m x 1.5 m (16 ft. x 5 ft.)
  • Allis Chalmers.
• Sagmill liner service unit.
  • Capacity: 2.5 metric tonnes @ 1.1 m.
  • Ani Ruwolt.
• Sagmill lube pump #1: 1 unit.
• Sagmill lube pump #2: 1 unit.
• Sagmill discharge sump.
  • Capacity: 40m³/hr.
  • Rubber lined MS.
• Boliden Allis ball mill.
  • Size: (diameter x length).
    • 4.72 m x 5.18 m (15.5 ft. x 7 ft.)
  • Lining: steel.
  • Complete with:
    • Air clutch.
    • Air compressor.
    • 3000 HP synchronous motor.
• Ball mill lube pump #1: 1 unit.
• Ball mill lube pump #2: 1 unit.

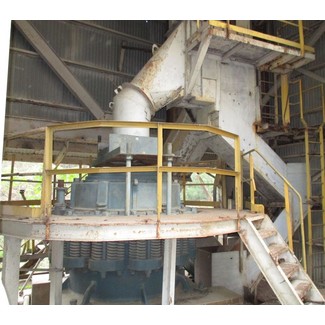

• Symons shorthead crusher.
  • Drive: 150 HP induction motor.
  • Size 1.372 m (4.25 ft.)
• Lime hopper bin.
  • Capacity: 2 metric tonnes (nominal).
• Lime belt feeder.
  • Capacity: 1 ton/hr (nominal).
  • Size: 600 mm wide x 1900 mm long.
  • Drive: Electric variable speed.
• Pikrose electric hoist.
• Stephen Adamson Apron feeder.
  • Model: TC-20.
  • 200 ton/hr capacity.
  • Size (L x W).
    • 6.5 m x 1.2 m (21.33 ft. x 3.94 ft).
  • Base frame: steel construction.
  • Includes hydraulic drive.

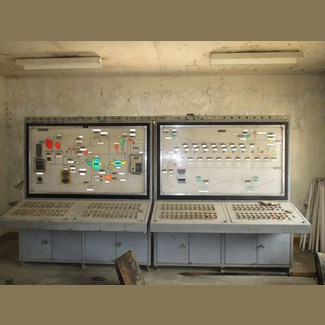

• Mill central control panel.
• Cyclone feed pumps: 12 x 10 FAH Warman.
• Cyclone feed pumps: 12 x 10 FAH Warman.
  • Capacity: 660 m³/hr.
  • Type: centrifugal.
  • Drive: fixed speed.
  • Construction: rubber lined casing, metal impeller.
• Air receiver tanks.
• Treated water break tank.
  • 6.56 ft²
• Mill & process water tanks:
  • Unit #1:
    • Capacity: 860 m³.
    • Size (diameter x height):
      • 10.5 m x 10.9 m (34.4 ft. x 35.76 ft.)
  • Unit #2:
    • Capacity: 1463 m³.
    • Size (diameter x height):
      • 12.3 m x 13.1 m (40 ft.  x 43 ft.)
  • Complete with:
    • Agitators.
      • Dual propeller.
      • 4 blades.
      • Rubber coated.
• Leach/CIP tanks: 20 units.
  • Capacity: 1463 m³.
  • Size (diameter x height):
    • 12.3 m x 13.1 m (40 ft.  x 43 ft.)
  • Complete with:
    • Agitators.
      • Dual propeller.
      • 4 blades.
      • Rubber coated.
• Eluate tank.
  • Size (diameter x height):
    • 4.5 m x 6.5 m (15 ft. x 21.5 ft.)
• Thermopac boiler.

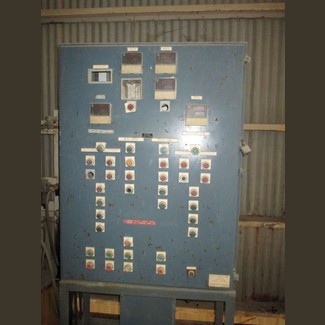

• Boiler control panel.
• Electrolyte transfer tank.
  • Size (diameter x height):
    • 3 m x 2.4 m (9.84 ft. x 7.87 ft.)
• Furnace ladle.
• Acid wash tanks: 2 units.
• Surge tank.
  • Size (diameter x height):
    • 7.3 m x 7.5 m (24 ft. x 24.6 ft.)
  • Capacity: 292 m³.
  • Dual 4-bladed, rubber coated propellers.
• (2) 150 HP induction motors.
• Pre-soak tanks.
• Conveyor #1 (CV01): 250 ton/hr.
  • 54 in. wide.
  • No belts and rollers.
• Conveyor #2: 24 in. wide.
  • No belts and rollers.
• Conveyor #3: 24 in. wide.
  • No belts and rollers.
• Conveyor #4: (return).
  • 24 in. wide.
  • No belts and rollers.
• Conveyor belts for CV01: 54 in. wide.
• Ramsey circulating load weightometer.
• Ramsey mill feed weightometer.
• Trash dewatering screen.
• Stearn Magnetics tramp metal magnet.
• Drilling equipment.
• RO system.
  • Capacity: 100 m³/day.
• Activated carbon filter tanks.
• Treated water storage tank.
  • Capacity: 100 m³.
• Osmonics ozonator.
• Demag overhead crane.
  • Capacity:
    • 20 metric tonne main.
    • 5 metric tonne auxiliary.
• Electrical wiring components and connections of various equipment to control panels.
