GME Jaw Crusher and Hammer Mill Package ID: 1490080

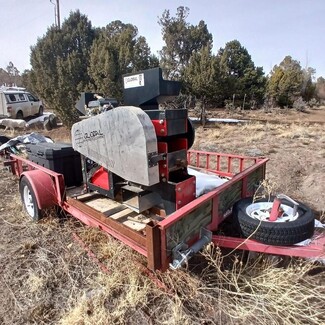

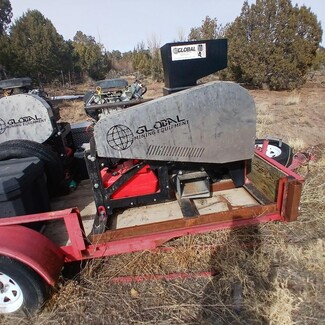

GME Jaw Crusher and Hammer Mill Package

• Make: Global Mining Equipment
• Condition: Used, Reported in Barely Used Condition
• Package Includes: Jaw Crusher, Hammer Mill, Vehicle Trailer


• GME10 Jaw Crusher:
  • Make: Global Mining Equipment
  • Model: GME10
  • Drive: Kohler Gas Engine
  • General Model Specifications:
    • Jaw Size: Approx. 10in (254mm) Wide
    • Feed Size: 8in (205mm) Max
    • Discharge Size:
      • Min: 0.25in (6mm)
      • Max: 3in (76mm)
    • Flange/Pillowblock: Blue Brute Bearings
    • Shaft: 2.4in at Camshaft, 2in at Driveshaft
    • Wear Plates: 0.75in (19mm), 450 Brinell Hardness Material
    • Drive: 20HP Gas Engine
    • Dimensions:
      • Height: 48in (1,220mm)
      • Width: 32in (812mm)
      • Length: 56in (1,422mm)
      • Weight: Approx. 950 Lbs. (430kg)


• GME14 Hammer Mill:
  • Make: Global Mining Equipment
  • Model: GME14
  • Drive: Kohler Gas Engine
  • General Model Specifications:
    • Feed Size:
      • Nominal: 1in (25mm)
      • Max: 2in (51mm)
    • Discharge Size:
      • Min: 400 Mesh
      • Max: 100 Mesh
    • Plates: 0.375in (9.5mm) 400 Brinnel Hardness Material
    • Hammers:
      • Quantity: 10 Hammers
      • Weight: 8 Lbs. Per Hammer
    • Drive: 30HP Gas Motor
    • Dimensions:
      • Length: 56in (1,422mm)
      • Width: 33in (838mm)
      • Height: 53in (1,346mm)
      • Weight: Approx. 1,400lbs (635kg)


• 18ft Equipment Trailer:
  • Size: 18ft Long
  • Weight Rating: Approx. 6,000lbs
  • Single Axle


• Location: Central USA
