18in Wide x 20ft Long Flat Belt Conveyor ID: 1472023

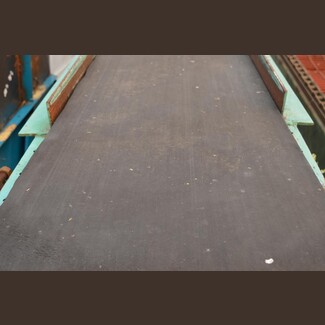

18in Wide x 20ft Long Flat Belt Conveyor

• Type: Flat Conveyor
• Condition: Used Condition
• Size: 18in Wide x 20ft Long
• Belt:
  • Ply: 4 Ply
  • Top Cover Thickness: 3/16in
  • Back Cover Thickness: 1/8in
• Head Pulley: 6in Diameter - Plain, Steel
• Tail Pulley: 6in Diameter - Plain, Steel
• Idlers: 2in Diameter Flat Carry Rollers
  • On 4.5in Diameter Centers
• Sides: 4in Tall Angle Iron Sides

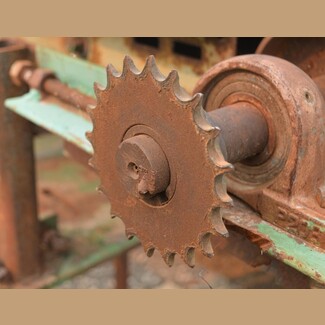

• Drive: Plain 20-Tooth Sprocket
• Mounted on 40in Tall Legs


• Overall Dimensions:
  • Length: 20ft
  • Width: 3ft
  • Height: 4ft


• Location: Savona, British Columbia, Canada
