1,100 TPH ThyssenKrupp Double Roll Crusher ID: 1352796

1,100 TPH ThyssenKrupp Double Roll Crusher

One Primary Double Roll-Sizer, Type DRS1000x2000, and One Secondary Double Roll Crusher, Type WS14/20

• Make: ThysennKrupp
• Capacity: 1,100 TPH
•  Model:
  • Primary: Double Roll-Sizer, Type DRS1000x2000
  • Secondary: Double Roll Crusher, Type WS14/20
• Condition: Good, Appears Unused


• Technical Data:

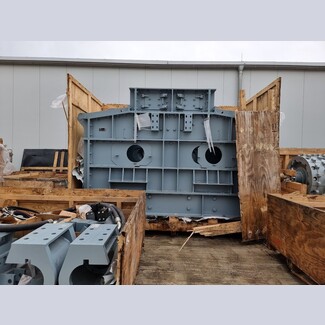

  • Primary RollSizer DRS 1000 x 2000 Center Sizer
    • Type: DRS 1000 x 2000 Center Sizer
    • Roll Width: 2,000mm
    • Distance of Rolls: 1,000mm
    • Feed Opening: 2,100mm x 2,000mm (Approx.)
    • Number of Crushing Rolls: 2
    • Peripheral Tip Speed of the Rolls: 2.1 m/s Low Speed (Approx.)
    • Type of Drive: Dual Drive (Not Included)
      • Power Required: 2 x 250kW
      • Speed: 1500 RPM
    • Two Mechanical Drives Incl.
      • Curved Tooth Coupling
      • Spur Gear Reducer with Oil Lubrication
      • Fluid Coupling Including Elastic Coupling
      • Parallel Shaft Speed Reducers
    • Protection of Drive Fluid Coupling: Reversible Rolls
    • Protection of the Drivetrain:
      • Speed Monitor to Indicate Stoppage of the Rolls
      • Hydraulic Fluid Coupling with Overheat Protection
      • PT 100 to Control the Temperature of the Bearings

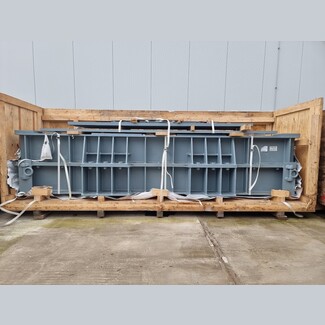

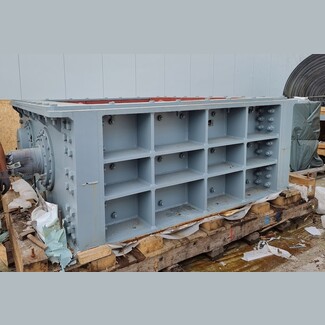

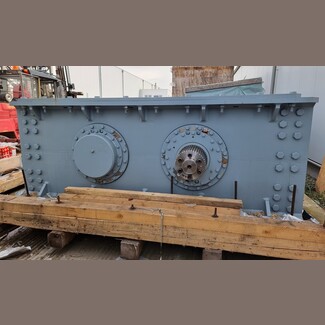

    • Crusher Housing:
      • Side Walls and the Front Walls - Bolted and Welded Design
      • Bearing Housings for the Shaft Bearings
      • Standard Wear Protection for the Crushing Chamber

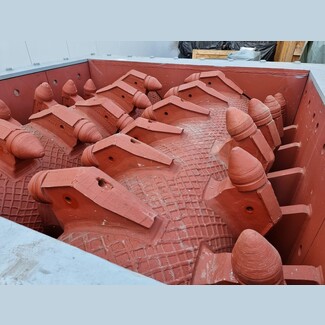

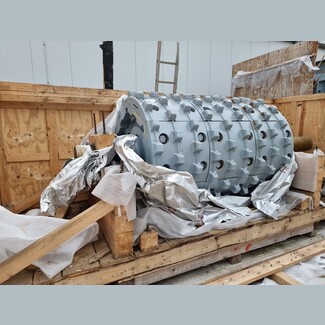

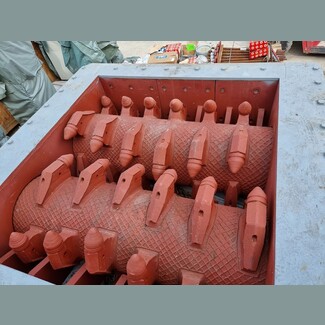

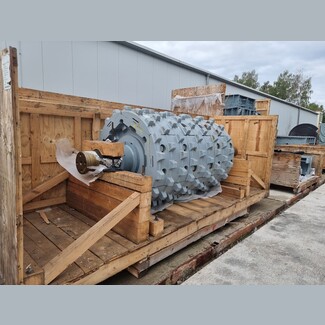

    • Crushing Rolls
      • Two Rolls, Supported in the Side Walls by the means of Antifriction Bearings (SKF/FAG)
      • Replaceable Crushing Tools (Including Special Tool for Exchanging of Crushing Picks)
      • Sealing Arrangement of the Antifriction Bearings


  • Secondary Double Roll Crusher WS 14 x 20
    • Type: WS 14 x 20
    • Roll Circle Diameter: 1,400mm (Approx.)
    • Roll Width: 2,000mm (Approx.)
    • Roller Shell Material: High Alloyed Steel
    • Feed Opening: 1,500mm x 1950mm (Approx.)
    • Number of Crushing Rolls: 2
    • Peripheral Speed of the Rolls: 6.5 m/s (Approx.)
    • Roller Gap: 80mm, Adjustable
    • Roller Tension and Protection System: Dual Hydraulic Cylinders
    • Type of Drive: Fixed Speed Drive with Different Velocity of Each Roller
      • Floating Roll: V-Belt Drive and Speed Reducer Gears, Flexible Coupling
      • Fixed Roll: V-Belt Drive and Speed Reducer Gear, Flexible Coupling
    • Required Drive: Not Included
      • 2 x 315kW
      • 1500 RPM

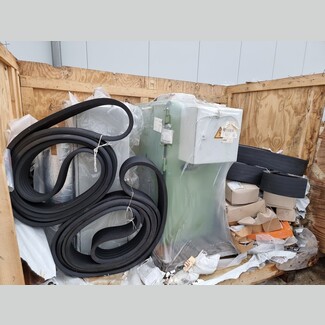

    • Two V-Belt Drives
      • Base Frames with Slide Rails

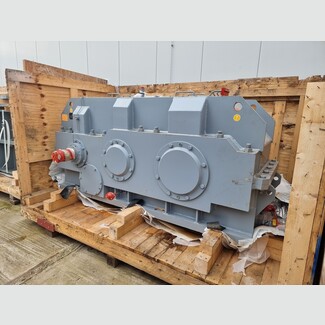

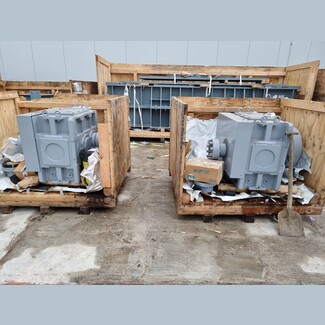

      • Gear Reducers
      • Flexible Couplings
      • Hydraulic Tensioning Devices
      • Pulleys and the V-belts Incl. Protection Hood
    • Protections of the Drivetrain:
      • Speed Monitor for the Rolls
      • PT 100 Temperature Control of Bearings


• Weight: 107,180kg Approx.
• Location: Europe
