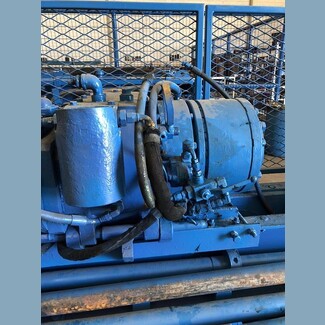

Marcotte STM 1500 Diamond Drill ID: 1094245

Title: Marcotte STM 1500

Description: The STM line of underground drill rigs are all manufactured and tested in VAL D’OR, Canada and used by the best drilling companies worldwide. Offering unprecedented performance and reliability, the STM 1500 and STM 600 drill rigs are the perfect choice for your next underground drilling project. With its simple mechanics, robust head assembly and safety devices, the STM 1500 has become the reference in Canada.

Make: Marcotte

Model: STM 1500

Year: 2018

Condition: Excellent

Equipment Details:

                Control Type: Hydraulic

               Motor: 125 HP 480 Volt

               Shipping Dimensions: Rig: 199in H  200in L  42in I

               Shipping Weight: 5200 Lbs (Drill Control Unit 200 Lbs)

General Model Specifications:

• Depth capacity
  • Max BWL 2000M (6561 ft)
  • Max NWL 1500M (4921 ft)
  • Max HWL 900M (2952 ft)
• Force max 9322NM (6875 LBF)
• Total weight 2358 kg ( 5200 lbs)
• Pump: FMC Bean 435
• Engine: Electric 125 HP
  • 2 Speed 1500 RPM
  • 480 Volt
• Drill head
  • Chuck Boyles HWL (PWL Optional)
  • Transmission Funk HMD2355 4 Speed
  • Hydraulic motor Rexroth 160 Variable
• Used less than 2 months before job was cancelled


• Location: North America
