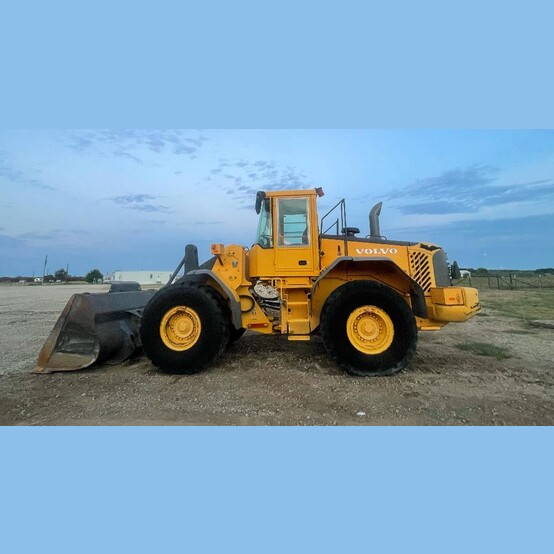

Volvo L120E Wheel Loader
- Make: Volvo
- Model: L120E
- Year: 2003
- Condition: Used
- Hours: 12,573 Hours
- Bucket Capacity: Heaped - 4.32yd³
- Breakout Force: 35946.95 Lbs
- Bucket Width: 9.45'
- Static Tipping Weight: 31261.6 Lbs
- Engine:
- Make: Volvo
- Model: D7D LA E2
- Cylinders: 6
- Power Output: 224 HP @1800 RPM
- Torque Output: 752 lb-ft @ 1400 RPM
- Transmission:
- Make: Volvo
- Model: HTE205
- 4 Speed Forward, 4 Speed Reverse
- 22 MPH Top Speed
- Hydraulic System
- Relief Valve Setting: 3626 PSI
- Pump Flow Capacity: 38.4 Gal/Min
- Raise Time: 5.4 Sec
- Dump Time: 2.1 Sec
- Lower Time: 2.5 Sec
- Additional Information:
- Fuel Capacity: 56.8 Gallon
- Hydraulic System Fluid Capacity: 37.8 Gallon
- Cab Equipped with A.C.
- Ride Control
- Ground Clearance: 1.32'
- Turning Radius: 21.1'
- 24V Electrical System
- Rear Axle Oscillation: 26°
- Tire Size: 23.5R25 L3
- Overall Dimensions:
- Length: 27.07' (With Bucket on Ground)
- Width: 8.8'
- Height: 11.03'
- Weight: 41799.7 Lbs
- Location: USA
