Sweco BigMax GPY-512AR Gyratory Sifter

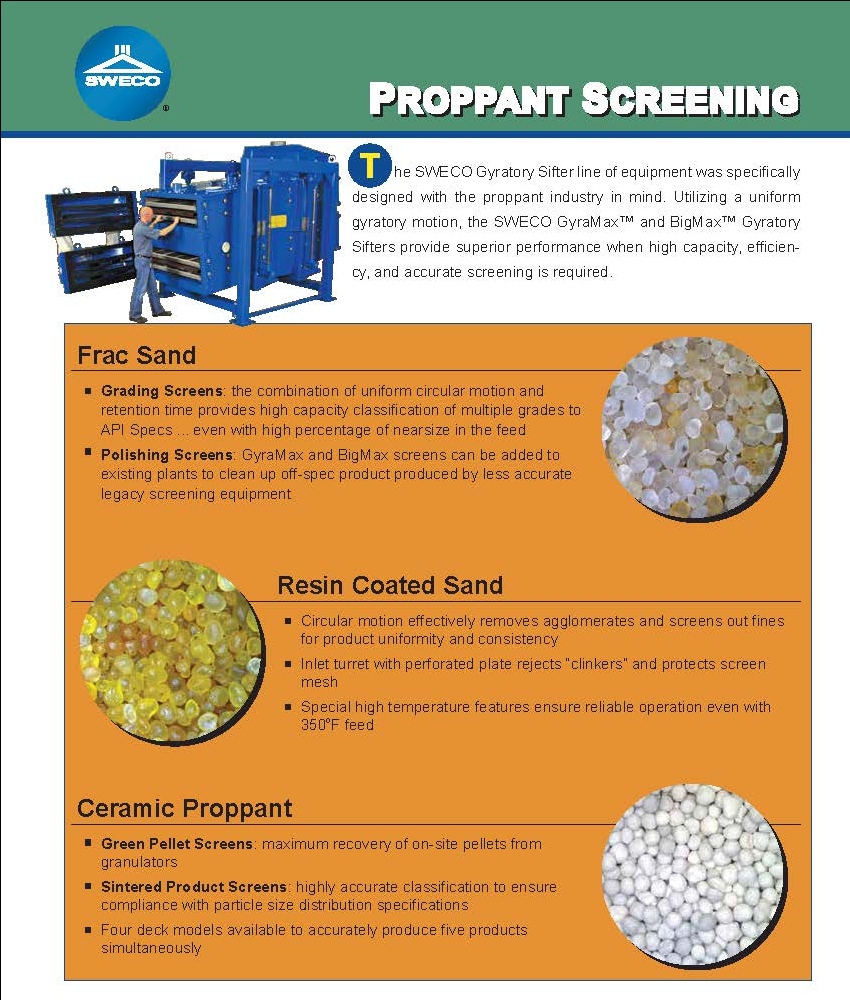

Description: The new SWECO BigMax™ Gyratory Sifter builds on the unparalleled success of the GyraMax line of sifters. Known for their durability, reliability and accuracy of separation, GyraMax sifters are used throughout the world to handle the most demanding screening applications such as frac sand, resin coated sand, ceramic proppant, activated carbon, fertilizer, limestone, petroleum coke, plastic pellets, PVC powder, roofing granules, salt, sugar, and more. With the BigMax™, SWECO adds high capacity screening to the list of GyraMax features. The BigMax™ provides extremely high capacity in a very compact, energy efficient footprint.

• Make: Sweco
• Model: BigMax GPY-512AR
• Type: Horizontal Screen Separator
• Style: Vibrating Gyratory Sifter
• Condition: Unused, New Surplus
• Construction: Carbon Steel
• Capacity: 15 TPH
• Number of Decks: 6 Decks
• Screen Size: 5ft x 12ft - 60in x 144in
• Decks:
  • Deck 1:
    • Screen Openings: 3MG Mesh 0.279in (7.09mm) Open
    • Screen Material: T316SS 0.0054in (0.14mm) Wire Dia.
    • Number of Sections: 1
    • Section Size: 57in x 144in (14448mm x 3658mm)
  • Deck 2:
    • Screen Openings: 46TBC Mesh 0.162in (0.41mm) Open
    • Screen Material: T316SS 0.0055in (0.14mm) Wire Dia.
    • Number of Sections: 1
    • Section Size: 57in x 144in (14448mm x 3658mm)
  • Deck 3:
    • Screen Openings: 120TBC Mesh 0.0058in (0.15mm) Open
    • Screen Material: T316SS 0.0025in (0.06mm) Wire Dia.
    • Number of Sections: 1
    • Section Size: 57in x 144in (14448mm x 3658mm)
  • Deck 4:
    • Screen Openings: 3MG Mesh 0.279in (7.09mm) Open
    • Screen Material: T316SS 0.005in (0.14mm) Wire Dia.
    • Number of Sections: 1
    • Section Size: 57in x 144in (14448mm x 3658mm)
  • Deck 5:
    • Screen Openings: 46TBC Mesh 0.162in (0.41mm) Open
    • Screen Material: T316SS 0.0055in (0.14mm) Wire Dia.
    • Number of Sections: 1
    • Section Size: 57in x 144in (14448mm x 3658mm)
  • Deck 6:
    • Screen Openings: 120TBC Mesh 0.0058in (0.15mm) Open
    • Screen Material: T316SS 0.0025in (0.06mm) Wire Dia.
    • Number of Sections: 1
    • Section Size: 57in x 144in (14448mm x 3658mm)
• Screen Area:
  • 360ft² (33m²) of Screen Area in “One Mesh” (Two Fractions) Configurations
  • 240ft² (22m²) of Screen Area in “Two Mesh” Configurations
  • 120ft² (11m²) of Screen Area in “Three Mesh” and “Four Mesh” Configurations
• Ball Deck: Equipped with "Ball Deck" Below Each Screen for Self-Cleaning Action
  • Balls: Synthetic in Metal Frames
• Access Doors: Yes
• Support: Lugs
• Support Details: Mounted on a Stand
• Controls: Yes
• Drive: Electric Motor
  • Power Output: 10HP
  • Rotating Speed: 1200 RPM
  • Voltage: 230/460 Volt
  • Frequency: 60Hz
  • Phase: 3-Phase


• Location: Western Canada
