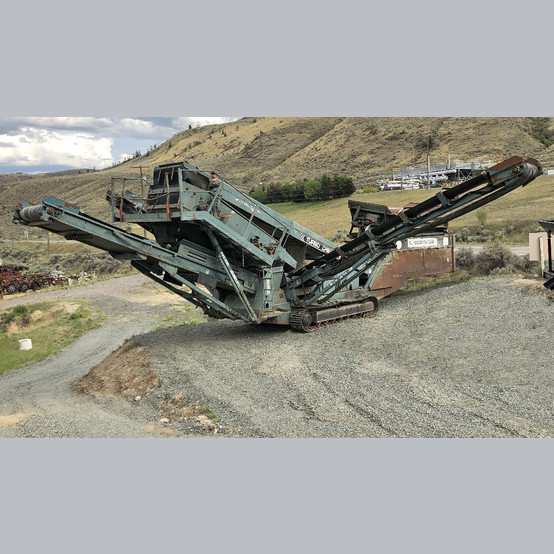

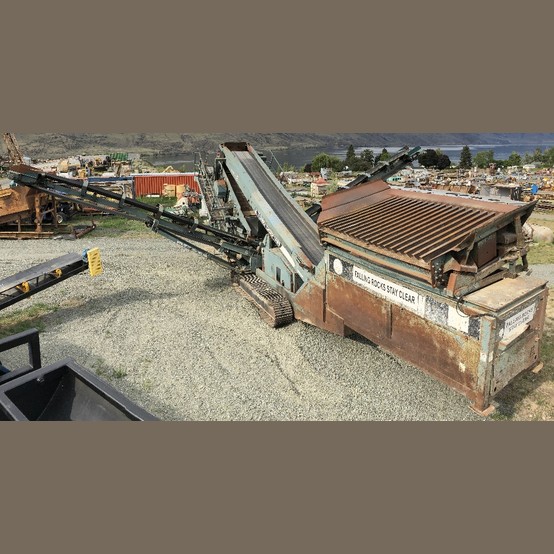

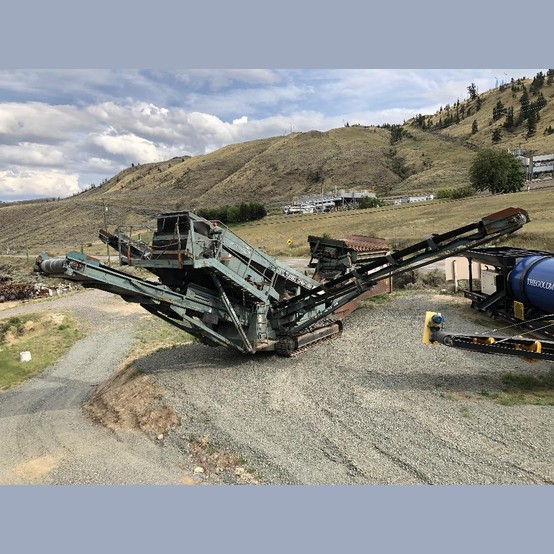

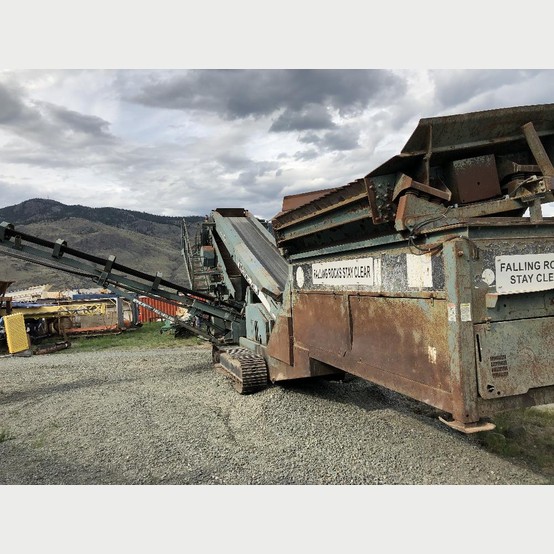

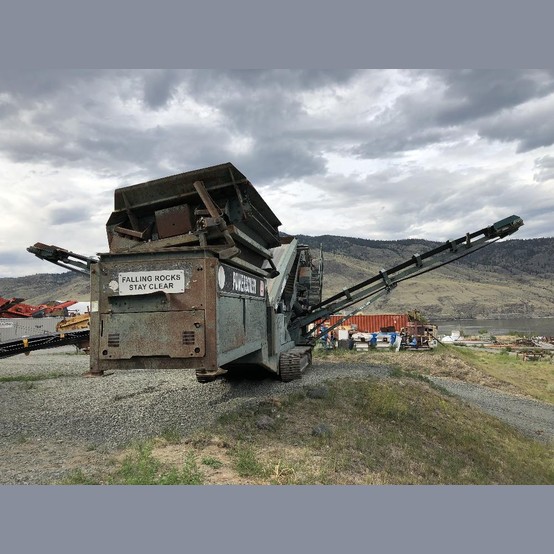

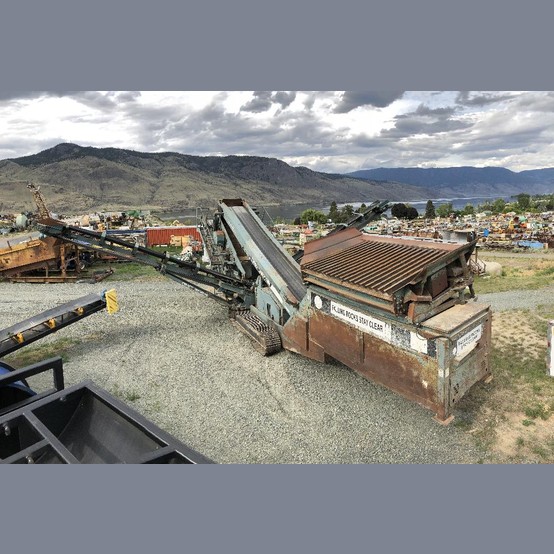

- Model: Chieftain 1400
- Year: 2005

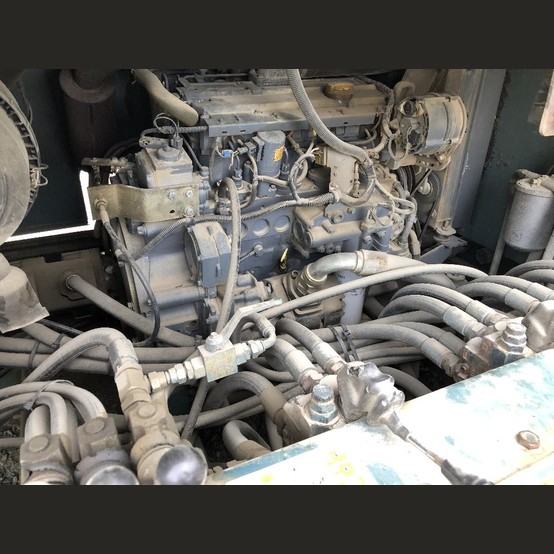

- Deutz 4 cylinder diesel/hydraulic motor.
- Model BF4M-1012 C
- 96.5 HP
- 7’ X 10’ Hydraulic tipping grizzly.
- 4” spacing.

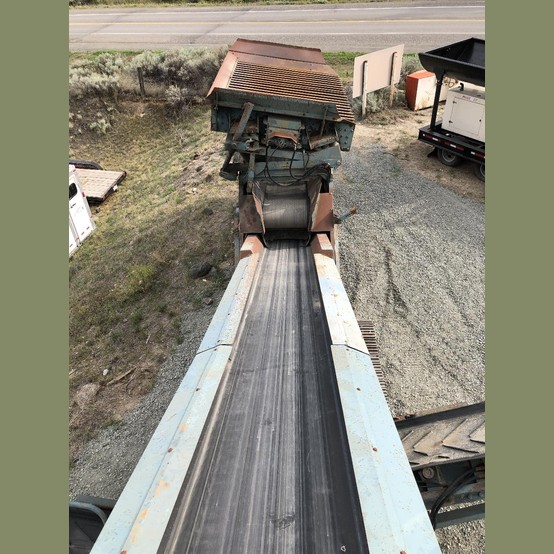

- 42” wide belt feeder.
- 42” wide screen feed conveyor.
- 5’ X 11’ 2-Deck Screen
- 1 in. Top.
- 24” wide side product conveyors.
- 48” wide end product conveyor.
- Features
- Output Potential Up to 400 TPH (441 US TPH)
- Radio Controlled Tipping Grid
- Integrated High Capacity Variable Speed Belt Feeder
- Grease Filled Patented 4 Bearing. 2-Deck Screenbox
- Hydraulic Screen Angle Adjustment
- Screen Walkway and Access Ladder
- Hydraulic Folding Conveyor
- Engine Protection Shutdown System
- Specifications
- Weight (Est.): 24,900 kgs (54,895 lbs)
- Transport Width: 2.75 m (9 ft.)
- Transport Length: 15.4 m (50 ft. 6 in.)
- Transport Height: 3.2 m (10 ft. 6 in.)
- Working Width: 16.2 m (53 ft. 2 in.)
- Working Length: 16.4 m (53 ft. 9 in.)
- Working Height: 4.8 m (15 ft. 7 in.)
- Screenunit: 3.3 m x 1.53 m (11 ft. x 5 ft.)
- Location: British Columbia, Canada
