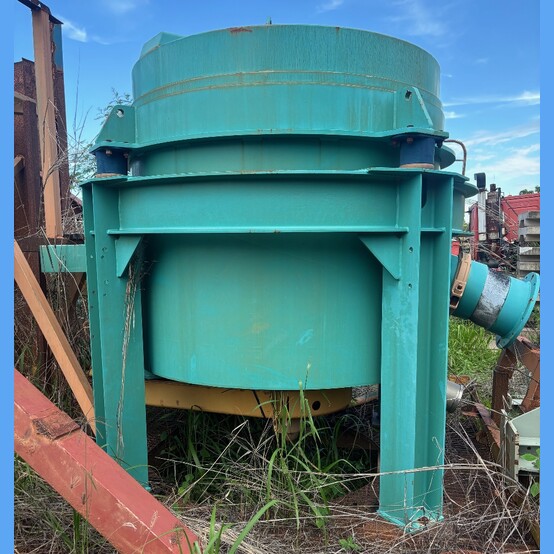

Knelson QS40 Concentrator

• Make: Knelson Concentrators
• Model: KC-QS40MS
• Series: Quantum Series
• Type: Centrifugal Concentrator
• Style: Enhanced Gravity Concentrator
• Year: 2019
• Condition: Used Condition
• Control: ICS Automation System - KCP-01


• General Model Specifications:
  • Maximum Feed Capacity: 275 TPH (250 tonnes/hr.) Solids
  • Maximum Total Volumetric Throughput: 1500 US GPM (340 m³/hr.)
  • Feed Size:
    • Maximum: 6mm (1/4")
    • Recommended: 1.7mm (1/16")
  • Feed Density: 0-75% Solids/Weight
  • Min Air Flow Required: 3ft³/min @ 90 PSI (5.1m³/hr. @ 600 kPa)
  • Concentrator Installation Weight: 7,300 lbs. (3,320 kg) - Not Including Piping
  • Motor: Electric 40-75HP (30-56kW)
  • Fluidization Water (G6 Cone): 185-270 US GPM (42-61m³/hr.)
  • Concentrate Weight (G6 Cone): 115-174 Lbs. (52-80kg)
  • G-Force Range (G6 Cone): 60-120 G's


• Dimensions:
  • Width: 98in (2488mm)
  • Depth: 86in (2184mm)
  • Height: 91in (2300mm)


• Location: Australia
