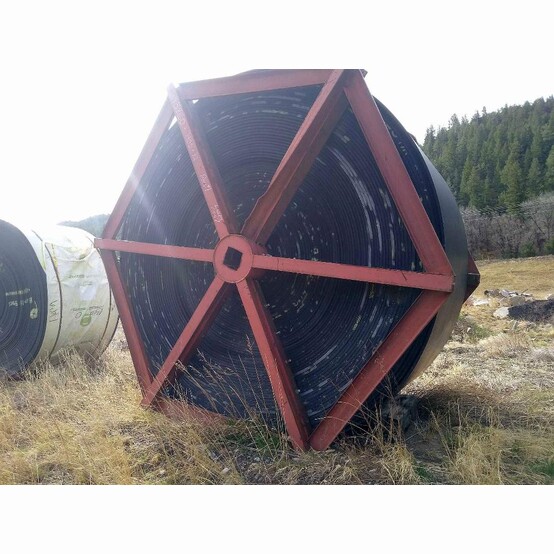

60in DynaFlight ST Fireboss Steel Core Belt

Quantity: 3 Rolls

• Make: DynaFlight
• Model: ST3150
• Type: Steel Core Belt
• Width: 60in
• Ply: 3 Ply
  • 3/8in Rubber Top
  • 1/4in Rubber Backing
• Fire Boss® Covering
• Rip Detection Loop @ 150ft Intervals
• Max Tension Rating: 2690 PIW (471 N/mm)
• Elastic Modulus: 1,295,000 lbs/in (227,000mm)
• Cord Pitch: 0.591in (15mm)
• Carcass Weight: 3.564 lbs/in/ft (20.9kg/m²)
• Max Cord Diameter: 0.319in (8.1mm)


• Roll Diameters and Weights
  • Roll 1: 11.75ft Diameter, 65,000 Lbs
  • Roll 2: 10.75ft Diameter, 54,755 Lbs
  • Roll 3: 9.42ft Diameter, 38,485 Lbs


• Location: Eastern USA
